8000L\10000L\12500L\16000L K Type Glass Lined Reactors

Product Name: K Type Glass Lined Reactors Another Name: Open Type Glass Lined Reactors Subordinate category: Glass Lined Reactor Product Capacity: 8000L \ 10000L \ 12500L \ 16000L Product Standard:ASME \ PED \ RTN Product Use: As the best equipment for hydrolysis, neutralization,...

Detailed description

Product Name: K Type Glass Lined Reactors

Another Name: Open Type Glass Lined Reactors

Subordinate category: Glass Lined Reactor

Product Capacity: 8000L \ 10000L \ 12500L \ 16000L

Product Standard:ASME \ PED \ RTN

Product Use: As the best equipment for hydrolysis, neutralization, crystallization, mixing, and emulsifying, the K Type glass lined reactor is widely used in the chemical, petroleum, pharmaceutical, pesticide, food, dye, and other industries.



Product Introduction:

Then Open glass lined reactor is containing high silica glass lined glaze spraying on the surface of the steel container, by high temperature burning process reasonable and firm adherence to the surface of the metal into composite material products, the tank cover glass lined reactor can be separated and tank, is arranged between the sealing gasket through the clip after a week fixed.

Easy to use, easy to maintain and maintain. It has the double advantages of glass stability and metal strength. It is an excellent corrosion resistant chemical equipment. It has corrosion resistance, impact resistance, smooth appearance, insulation, heat resistance, wear-resistant and other reliable performance. Glass lined equipment, such as glass lined reactors, are widely used in chemical, petroleum, pharmaceutical, pesticide, food, dye and other industrial processes. They are the most ideal equipment for hydrolysis, neutralization, crystallization, mixing and emulsification.




Product Features:

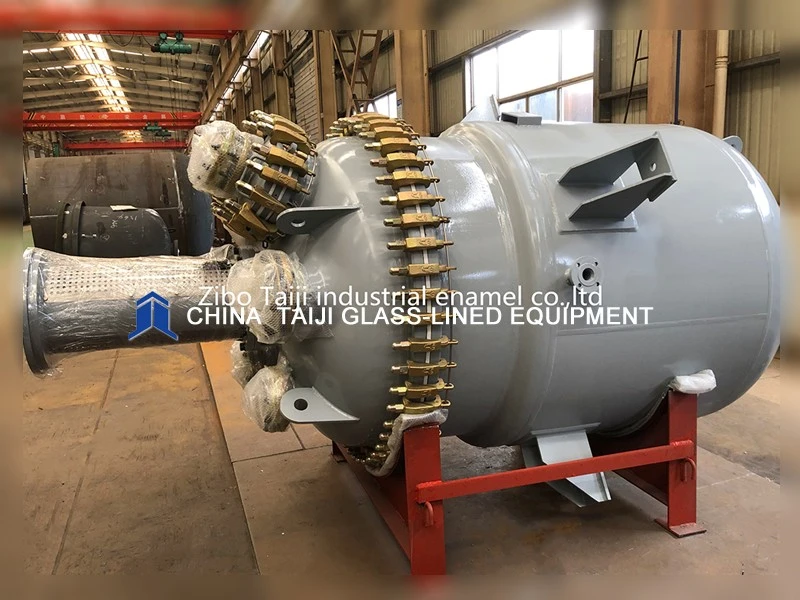

1. We have the U.S. ASME certification, European PED certification. The K type glass lined reactor is a reactor designed with separable cover and body. The cover is fastened to the body using clamps, with gaskets between them.

2. Generally, this pressure vessel is suitable for the small capacity chemical processing works.

3. Since the cover can be separated from the body, the chemical process equipment comes with a diversity of agitating methods and is excellent for all kinds of users.

4. Made from TJ09 high end enamel, combining proven and sophisticated enameling technology, this open type glass lined reactor provides remarkable resistance to corrosion, impact and severe change of temperature as well as reliable durability.

5. The production process of open type glass lined reactor adopts pipelining technology, and the quality is reliable.

6. The glass lined reactor is made of electric furnace. The porcelain surface is clean and not easy to collapse. The quality of the porcelain is of the first class and it is difficult to break the porcelain.

7. Have thirty-six glass lined equipment production patented technology, a specification of an electric furnace, burning glass equipment is not deformed.

8. On the surface of glass coating equipment derusting paint, the product looks more beautiful, generous, world-class.

9. Tai Chi glass lined equipment sells well in China and is exported to more than 30 countries and regions.

10. We can design and manufacture all kinds of non-standard glass lined reactor equipment according to the user's needs.



Technical Parameters of the K Type Glass Lined Reactors:

Design Drawing of K8000L-K16000L Glass Lined Reactor



Unit: mm
SpecificationsK8000LK10000LK12500LK16000L
Nominal Capacity (L)8000100001250016000
Total Capacity (L)10190127501525018493
Calculated Capacity(Notes 1) (L)8850109001340016680
Jacket Capacity (L)1724194023242500
Heat Exchange Area ( ㎡ )19.621.5426.528
Reference Weight (kg)781087201015511700
Maind12000220022002400
Dimensiond22200240024002600

d3(Notes 2)2452270427042908

h13000306037203740

h2710770770825

h3380400400460

h4830850850900

B1400470470470

B2510550550550

Φ30363636
Nozzle DNa125150150150
c300×400300×400300×400450
d200200200200
e1200200200200
e2150200200200
g1150150150150
g2150150150150
g3150150150150
g4/150150150
h125125125125
k125125125125
Jacketb1658080100
Nozzle DNb2658080100

b3658080100

b4/8080100

f1658080100

f2658080100

f3658080100

mG3/4''G3/4''G3/4''G3/4''

nG1/2''G1/2''G1/2''G1/2''
DriveDN110110110130
h51375137513751995
Notes 1: Calculate Capacity: Volume under highneck flange.
Notes 2: Support types could be determined by users; With no special request, lugs would be normally applied.
