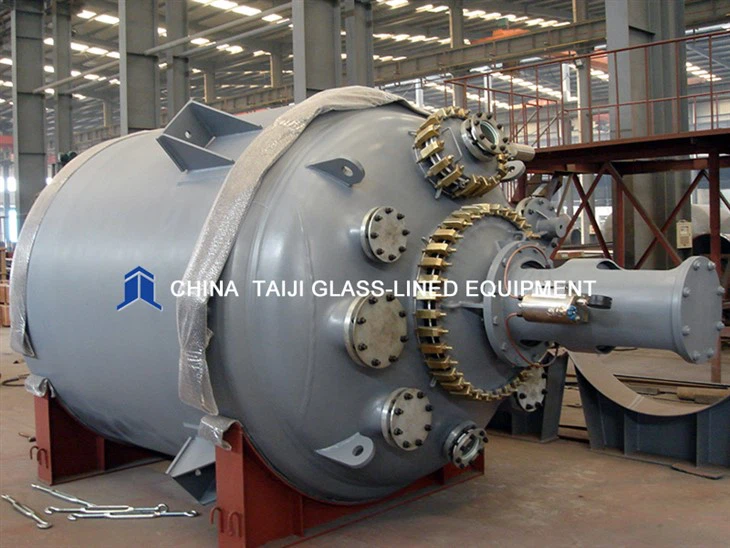

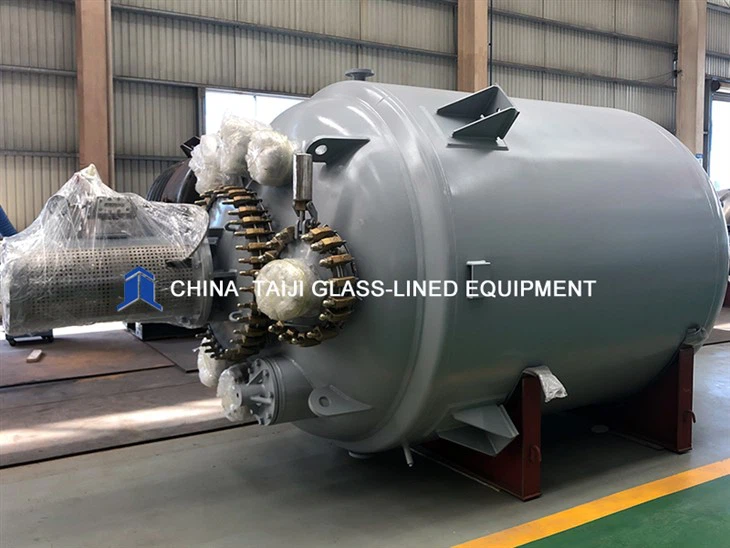

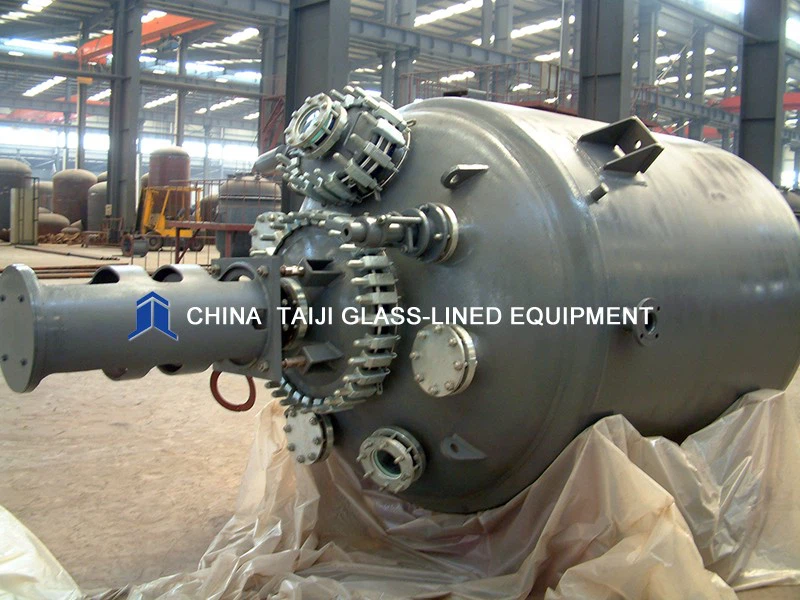

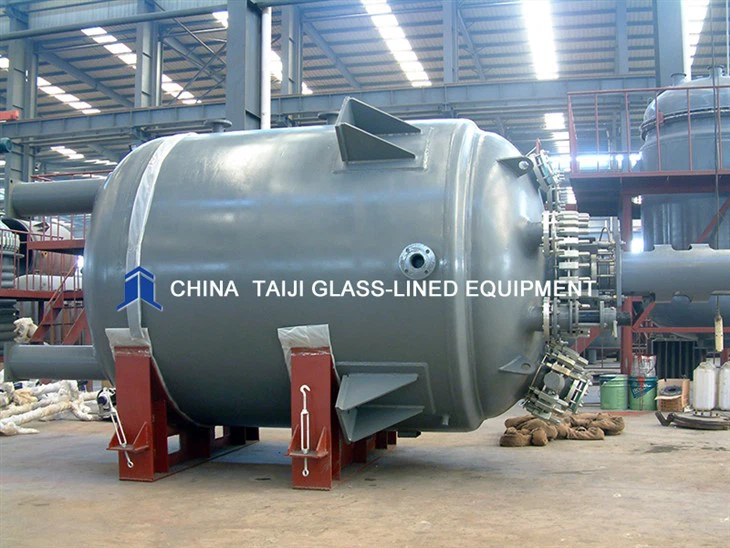

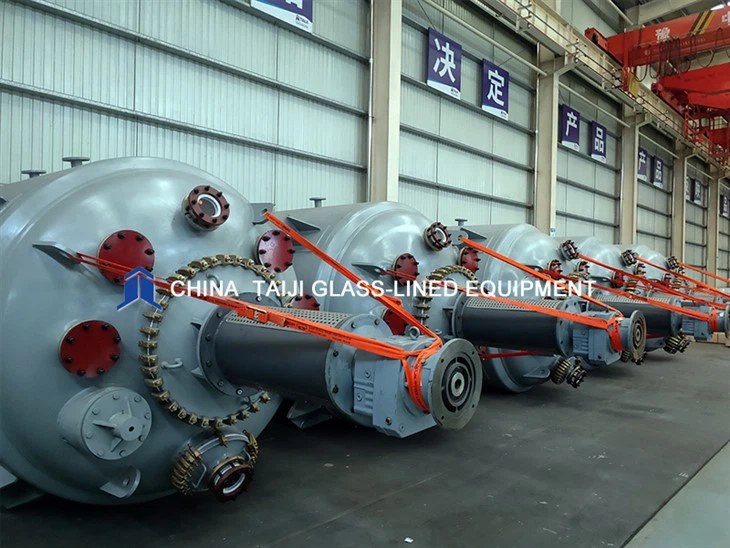

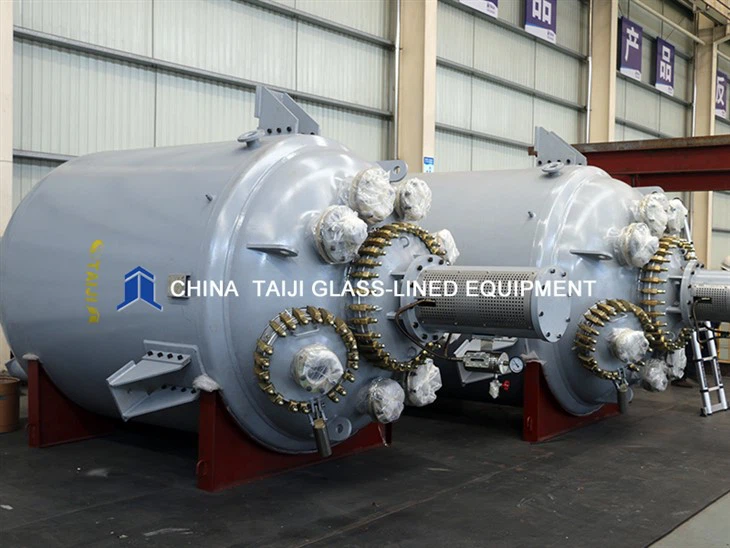

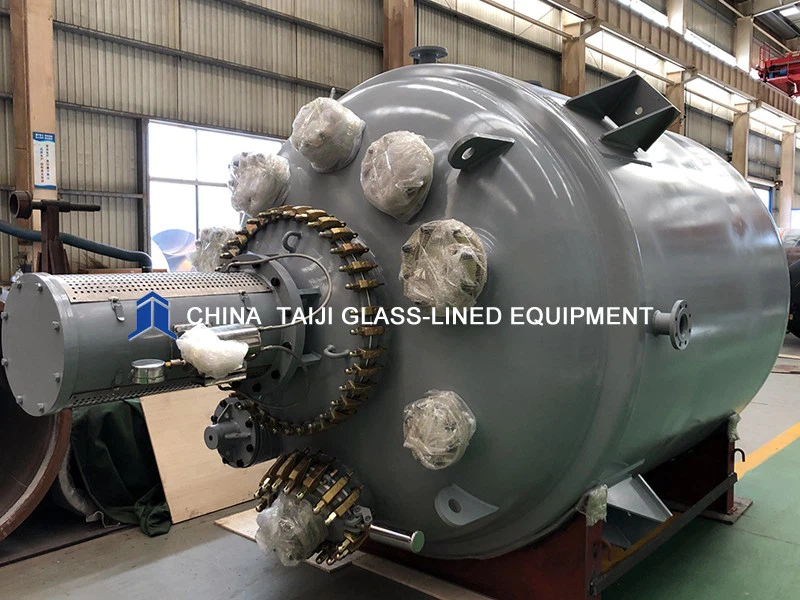

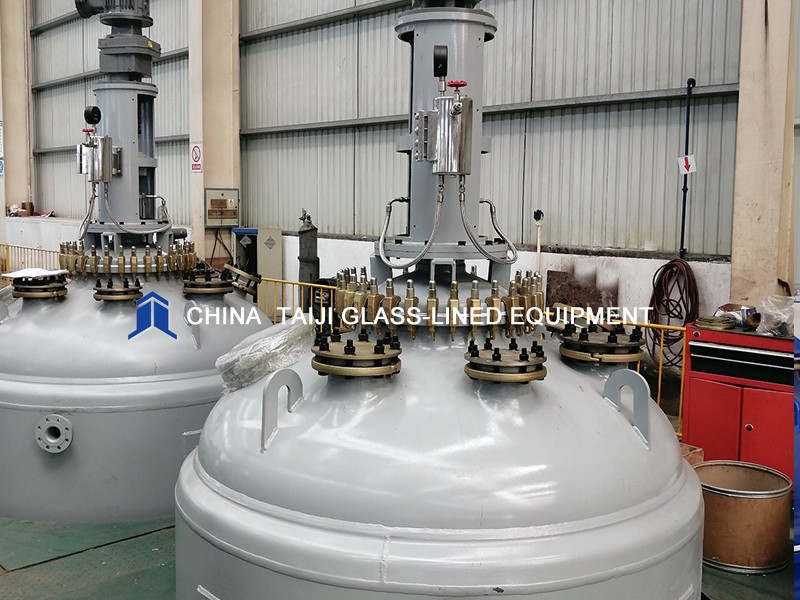

F1500L\F2000L\F3000L\F4000L\F5000L\F6300L F Type Class Lined Reactors

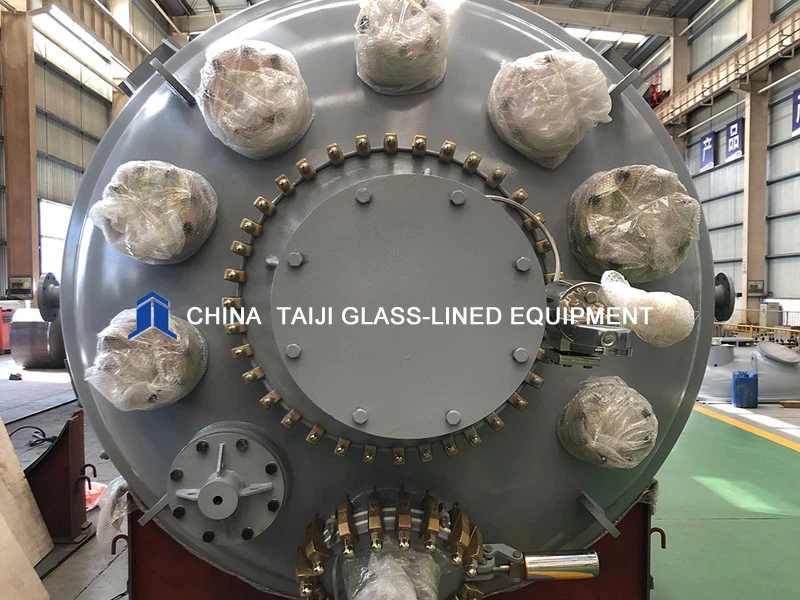

The F type glass lined reactor comes with a one-piece design that the cover and body can not be separated. Due to that, a manhole has to be designed on the head of the reactor to make it easy for operators to enter the reactor to carry out maintenance and parts replacement.

Detailed description

Product Name: F Type Glass Lined Reactors

Another Name: Closed Type Glass Lined Reactors

Subordinate category: Glass Lined Reactor

Product Capacity: F1500L \ F2000L \ F3000L \ F4000L \ F5000L \ F6300L

Product Standard:ASME \ PED \ RTN

Product Use: Closed glass lined reactor is widely used in large chemical, petroleum, pharmaceutical, pesticide, food and dye industries. It is the best equipment for the process of hydrolysis, neutralization, crystallization, mixing and emulsification.

Product Introduction:

The closed glass lined reactor is containing high silica glass lined glaze spraying on the surface of the steel container, by high temperature burning process reasonable and firm adherence to the surface of the metal into composite material products, the tank cover glass lined reactor is one point and tank. It has the double advantages of glass stability and metal strength. It is an excellent corrosion resistant chemical equipment. It has corrosion resistance, impact resistance, smooth appearance, insulation, heat resistance, wear-resistant and other reliable performance. Glass lined equipment, such as glass lined reactors, are widely used in chemical, petroleum, pharmaceutical, pesticide, food, dye and other industrial processes. They are the most ideal equipment for hydrolysis, neutralization, crystallization, mixing and emulsification.


未命名 -1.jpg


Product Features:

1. We have the U.S. ASME certification, European PED certification.

2. The F type glass lined reactor comes with a one-piece design that the cover and body can not be separated. Due to that, a manhole has to be designed on the head of the reactor to make it easy for operators to enter the reactor to carry out maintenance and parts replacement.

3. It is a large capacity industrial process reactor, suitable for large scale production environment.

4. Similar to the K-type reactor, this type of chemical reactor is manufactured using TJ09 high end enamel and skilled enameling process. This enables the glass lining to be remarkably corrosion resistant, impact resistant and temperature variation resistant, combined with less prone to fracture and high durability.

5. Taiji is able to design and manufacture non standard glass lined reactor to user's requirements.

6. Our F type glass lined steel reactor comes in complete specifications, including F1500L, F2000L, F3000L, F4000L, F5000L, F6300L, F8000L, F10000L, F12500L, F16000L, F20000L, F30000L, F50000L, etc.







Technical Parameters of the Glass-Lined Reactor

Design Drawing of F1500L-F6300L Glass-Lined Reactor



Internal VesselJacket
Design Pressure(MPa)0.4/0.6/1.00.6/1.0
Design Temperature( ℃ )-19 ℃ /200℃-19 ℃ /200℃
SymbolUsage
aManhole
bAgitator Hole
cThermowell
d, f, g, hSpare
eSightglass
jMedium Outlet
k1, k2, k3In/Outlet
n1, n2, n3Spray Nozzle
mVent Hole



B2510510510510510510

Φ303030303030
Nozzle DNa300×400300×400300×400300×400300×400300×400
b125125150150150150
c100100100100125125
d100100100100125125
e125125125125125125
f125125125125150150
g100100100100125125
h125125125125150150
j100100125125125125
Jacketk1404065656565
Nozzle DNk2404065656565

k3404065656565

n1505065656565

n2///656565

n3505065656565

mG3/8"G3/8"G3/8"G3/8"G3/8"G3/8"
DriveDN808095959595
h5132013201360136013601530
Notes 1: Calculated Capacity: Volume under highneck flange.
Notes 2: Types of support depend on users; if there is no special request, lugs would be normally applied.
