Glass-Lined Agitator (with Removable Blade)

This type of glass lined steel agitator will maximize your process flexibility by allowing agitator blades to be installed, removed and changed to various types without having to open the cover of reactor.

Detailed description

Glass-Lined Agitator with Removable Blade
Taiji has developed a wide range of glass-lined agitators with removable blades. They are specially designed to handle the problem that glass-lined agitator is not easy to be changed. This type of glass lined steel agitator will maximize your process flexibility by allowing agitator blades to be installed, removed and changed to various types without having to open the cover of reactor. There, the mechanical seal of the reactor is not disturbed and maintenance costs are thereby lowered. It is especially suitable for the closed type glass-lined reactors.


Product Gallery


Various Glass-Lined Agitator Blades


CBT Turbine Type


TBF Propeller Type


PBI Pitched Blade Turbine Type


VBT Straight Blade Turbine Type


MIG Curved Blade Turbine Type


VDT Disk Turbine Type

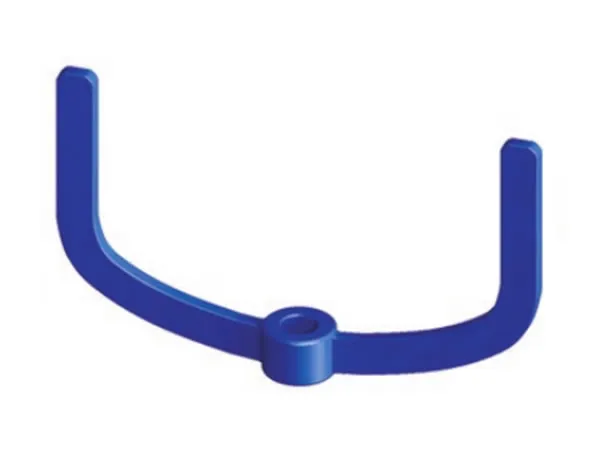

ANC Anchor Type

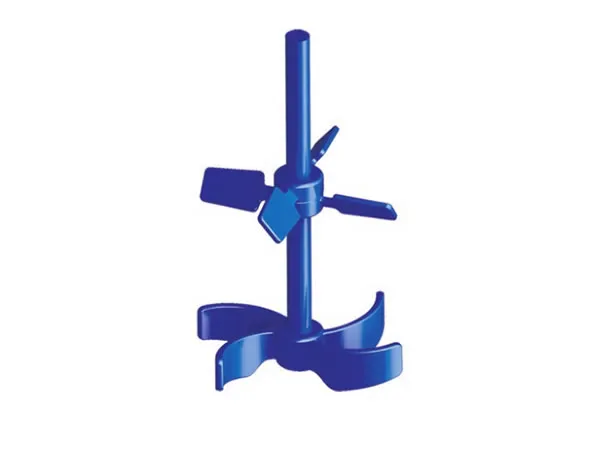

CBT+TBF Combination Type


Installation Principle
Feed nitrogen into the agitator shaft. According to thermal expansion and contraction principle, the shaft will be contracted at the extremely low temperature and thereby allow the agitator blade to be easily fitted on it. As the temperature returns to normal, the shaft expands and is tightly coupled with the blade.


Blade Types
This kind of glass lined agitator comes in multi blade types including CBT turbine blade, TBF propeller blade, PBT pitched blade, VBT straight blade, MIG curved blade, VDT disk turbine blade, ANC anchor blade, CBT+TBF combination, etc.


Blending And
Heat Transfer

Emulsification

Suspension

Gas Dispersion

High Viscosity

Low-Level Mixing

CBT

Excellent

Good

Good

Adequate

Adequate

Excellent

TBF

Excellent

Adequate

Good

Adequate

Good

Adequate

PBT

Excellent

Good

Excellent

Adequate

Good

Adequate

VBT

Good

Excellent

Adequate

Adequate

Adequate

Adequate

MIG

Excellent

Good

Good

Adequate

Adequate

Adequate

VDT

Good

Good

Good

Excellent

Adequate

Adequate

ANC

Adequate

Poor

Adequate

Poor

Good

Good

CBT+TBF

Excellent

Excellent

Excellent

Excellent

Excellent



We are one of the leading glass-lined agitator (with removable blade) manufacturers and suppliers, paying high attention to quality. If you are interested in our products made in China, welcome to contact our factory for more information. We'll offer you the best service and competitive price.
